ДЕТАЛИ ТРУБОПРОВОДОВ
СТАЛЬНЫЕ БЕСШОВНЫЕ ПРИВАРНЫЕ
НА Ру £ 10 МПа (£ 100 кгс/см2)
ГОСТ
17375-83, ГОСТ 17376-83,
ГОСТ 17378-83 – ГОСТ 17380-83
КОМИТЕТ СТАНДАРТИЗАЦИИ И МЕТРОЛОГИИ СССР
Москва
ГОСУДАРСТВЕННЫЙ СТАНДАРТ СОЮЗА ССР
|
ДЕТАЛИ
ТРУБОПРОВОДОВ СТАЛЬНЫЕ Конструкция и размеры Seamless welded steel pipeline components |
ГОСТ |
Дата введения 01.01.85
1. Настоящий стандарт распространяется на стальные бесшовные приварные концентрические и эксцентрические переходы на Ру £ 10 МПа (£ 100 кгс/см2).
2. Основные параметры переходов - по ГОСТ 17380-83.

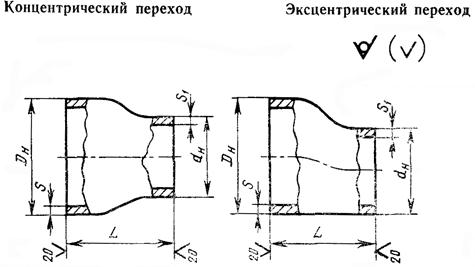

3. Конструкция и размеры переходов должны соответствовать указанным на чертеже и в таблице.
(Измененная редакция, Изм. № 3).
3.1. Присоединительные концы переходов должны быть прямыми на длине не менее 5 мм.
Размеры, мм
|
Наружный |
L |
s |
s1 |
Условное давление Ру, МПа (» кгс/см2), |
Масса, кг, не более |
|||||
|
Транспортируемые вещества |
||||||||||
|
Dy |
dy |
Dн |
dн |
неагрессивные |
среднеагрессивные |
пар и горячая вода |
||||
|
40 |
25 |
45 |
32 |
30 |
2,5 |
2,0 |
10,0 (100) |
2,5 (25) |
10,0 (100) |
0,1 |
|
4,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,2 |
|||||
|
20 |
25 |
2,5 |
1,6 |
10,0 (100) |
2,5 (25) |
10,0 (100) |
0,1 |
|||
|
4,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,2 |
|||||
|
50 |
40 |
57 |
45 |
60 |
4,0 |
2,5 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
|
5,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
32 |
38 |
45 |
4,0 |
2,0 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
||
|
5,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
25 |
32 |
4,0 |
2,0 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
|||
|
5,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
20 |
25 |
4,0 |
1,6 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
|||
|
5,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
65 |
50 |
76 |
57 |
70 |
3,5 |
3,0 |
10,0 (100) |
4,0 (40) |
10,0 (100) |
0,4 |
|
6,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,7 |
|||||
|
40 |
45 |
3,5 |
2,5 |
10,0 (100) |
4,0 (40) |
10,0 (100) |
0,4 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,6 |
|||||
|
32 |
38 |
55 |
3,5 |
2,5 |
10,0 (100) |
4,0 (40) |
10,0 (100) |
0,3 |
||
|
6,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,5 |
|||||
|
80 |
65 |
89 |
76 |
75 |
3,5 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,6 |
|
6,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
0,9 |
|||||
|
8,0 |
6,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
1,1 |
|||||
|
50 |
57 |
3,5 |
3,0 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,6 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
0,9 |
|||||
|
8,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
1,1 |
|||||
|
40 |
45 |
3,5 |
2,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,6 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
6,3 (63) |
10,0 (100) |
0,8 |
|||||
|
100 |
80 |
108 |
89 |
80 |
4,0 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
1,0 |
|
6,0 |
6,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
1,4 |
|||||
|
65 |
76 |
4,0 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,9 |
|||
|
6,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
1,1 |
|||||
|
50 |
57 |
4,0 |
3,0 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,9 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
1,2 |
|||||
|
125 |
100 |
133 |
108 |
100 |
5,0 |
4,0 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
1,7 |
|
8,0 |
6,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
2,6 |
|||||
|
80 |
89 |
4,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,5 |
|||
|
6,0 |
5,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
1,8 |
|||||
|
8,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,4 |
|||||
|
65 |
76 |
5,0 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
1,6 |
|||
|
8,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
2,0 |
|||||
|
50 |
57 |
4,0 |
3,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,0 |
|||
|
8,0 |
4,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,0 |
|||||
|
150 |
125 |
159 |
133 |
130 |
4,5 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,6 |
|
8,0 |
8,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,1 |
|||||
|
100 |
108 |
4,5 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,4 |
|||
|
8,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
3,7 |
|||||
|
80 |
89 |
4,5 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,2 |
|||
|
8,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
3,4 |
|||||
|
65 |
76 |
75 |
4,5 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,5 |
||
|
8,0 |
4,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,6 |
|||||
|
50 |
57 |
4,5 |
3,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,5 |
|||
|
8,0 |
4,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,6 |
|||||
|
200 |
150 |
219 |
159 |
140 |
6,0 |
4,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
5,3 |
|
10,0 |
8,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
7,2 |
|||||
|
125 |
133 |
6,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
4,2 |
|||
|
10,0 |
8,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
6,8 |
|||||
|
100 |
108 |
95 |
6,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
||
|
10,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
80 |
89 |
6,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
|||
|
10,0 |
5,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
65 |
76 |
6,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
|||
|
10,0 |
5,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
50 |
57 |
6,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
|||
|
10,0 |
5,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
250 |
200 |
273 |
219 |
180 |
7,0 |
6,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
8,6 |
|
10,0 |
8,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
11,3 |
|||||
|
12,0 |
10,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
14,6 |
|||||
|
150 |
159 |
7,0 |
4,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
8,1 |
|||
|
10,0 |
6,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
10,2 |
|||||
|
12,0 |
10,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
12,3 |
|||||
|
125 |
133 |
140 |
8,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
6,8 |
||
|
10,0 |
6,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
8,5 |
|||||
|
10,0** |
6,0** |
10,0 (100)* |
8,0 (80) |
8,0 (80) |
8,5 |
|||||
|
100 |
108 |
8,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
6,8 |
|||
|
10,0 |
5,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
8,5 |
|||||
|
10,0** |
5,0** |
10,0 (100)* |
8,0 (80) |
8,0 (80) |
8,5 |
|||||
|
300 |
250 |
325 |
273 |
180 |
8,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
12,2 |
|
10,0 |
10,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
14,6 |
|||||
|
12,0 |
12,0 |
10,0 (100)* |
8,0 (80) |
8,0 (80) |
17,2 |
|||||
|
200 |
219 |
10,0 |
8,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
14,0 |
|||
|
12,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
16,1 |
|||||
|
150 |
159 |
140 |
8,0 |
4,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
11,4 |
||
|
12,0 |
8,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
15,6 |
|||||
|
125 |
133 |
8,0 |
5,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
11,4 |
|||
|
12,0 |
8,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
15,6 |
|||||
|
100 |
108 |
10,0 |
4,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
13,1 |
|||
|
12,0 |
6,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
15,7 |
|||||
|
350 |
300 |
377 |
325 |
220 |
10,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
20,7 |
|
12,0 |
10,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
24,9 |
|||||
|
14,0*** |
12,0*** |
8,0 (80)* |
8,0 (80) |
6,3 (63)* |
29,1 |
|||||
|
16,0 |
16,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
32,8 |
|||||
|
250 |
273 |
10,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
19,4 |
|||
|
12,0 |
10,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
23,3 |
|||||
|
14,0*** |
12,0*** |
8,0 (80)* |
8,0 (80) |
6,3 (63)* |
27,2 |
|||||
|
16,0 |
12,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
30,6 |
|||||
|
200 |
219 |
12,0 |
8,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
21,6 |
|||
|
16,0 |
10,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
28,4 |
|||||
|
150 |
159 |
12,0 |
6,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
20,0 |
|||
|
16,0 |
8,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
26,2 |
|||||
|
400 |
350 |
426 |
377 |
220 |
10,0 |
10,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
27,9 |
|
12,0** |
12,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
33,4 |
|||||
|
14,0*** |
14,0*** |
8,0 (80)* |
6,3 (63)* |
6,3 (63)* |
39,1 |
|||||
|
16,0 |
16,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
54,3 |
|||||
|
300 |
325 |
10,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
26,0 |
|||
|
12,0** |
10,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
31,2 |
|||||
|
14,0*** |
12,0*** |
8,0 (80)* |
6,3 (63)* |
6,3 (63)* |
36,4 |
|||||
|
16,0 |
12,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
36,4 |
|||||
|
250 |
273 |
12,0 |
8,0 |
6,3 (63) |
4,0 (40) |
6,3 (63) |
29,5 |
|||
|
12,0** |
10,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
31,2 |
|||||
|
16,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
34,4 |
|||||
|
12,0 |
6,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
27,7 |
|||||
|
12,0** |
8,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
32,3 |
|||||
|
16,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
44,9 |
|||||
|
150 |
159 |
12,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
31,9 |
|||
|
12,0** |
8,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
37,2 |
|||||
|
16,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
53,2 |
|||||
|
500 |
400 |
530 |
426 |
300 |
12,0*** |
12,0*** |
4,0 (40) |
2,5 (25) |
2,5 (25) |
52,9 |
|
14,0 |
12,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
61,7 |
|||||
|
14,0** |
12,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
61,7 |
|||||
|
16,0** |
16,0** |
10,0 (100) |
8,0 (80) |
8,0 (80) |
73,6 |
|||||
|
16,0*** |
16,0*** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
73,6 |
|||||
|
350 |
377 |
12,0*** |
12,0*** |
4,0 (40) |
2,5 (25) |
2,5 (25) |
49,7 |
|||
|
14,0 |
12,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
57,9 |
|||||
|
14,0** |
12,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
57,9 |
|||||
|
16,0** |
16,0** |
10,0 (100) |
8,0 (80) |
8,0 (80) |
70,3 |
|||||
|
16,0*** |
16,0*** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
70,3 |
|||||
__________
* Для условий эксплуатации, указанных в п. 1.1г ГОСТ 17380-83.
** Изготавливаются только из стали 09Г2С.
*** Изготавливаются по согласованию между изготовителем и потребителем.
Примечания:
1. Условные давления, указанные в графе «пар и горячая вода», относятся только к деталям трубопроводов, на которые распространяются «Правила устройства и безопасной эксплуатации трубопроводов пара и горячей воды» Госгортехнадзора СССР.
2. Масса указана для справок.
3. (Исключен, Изм. № 2).
Пример условного обозначения концентрического перехода Dн =325 мм, dн = 273 мм, s = 10 мм, s1 = 10 мм из стали 20:
Переход К 325×10 - 273×10 ГОСТ 17378-83.
То же, из стали 09Г2С:
Переход К 325×10 - 273×10 - 09Г2С ГОСТ 17378-83.
То же, эксцентрического из стали 20:
Переход Э 325×10 - 273×10 ГОСТ 17378-83.
То же, из стали 09Г2С:
Переход Э 325×10 - 273×10 - 09Г2С ГОСТ 17378-83.
То же, из стали 10Г2 для трубопроводов пара и горячей воды:
Переход Пэ 325×10 - 273×10 - 10Г2 ГОСТ 17378-83.
4. Технические требования - по ГОСТ 17380-83.
5. Коды ОКП приведены в справочном приложении.
ПРИЛОЖЕНИЕ
Справочное
КОДЫ ОКП
1. Коды ОКП переходов для неагрессивных и среднеагрессивных сред должны соответствовать указанным в табл. 1.
Таблица 1
|
Обозначение перехода |
Коды ОКП переходов из стали |
||||||
|
20 |
10Г2 |
09Г2С |
|||||
|
Код ОКП |
КЧ |
Код ОКП |
КЧ |
Код ОКП |
КЧ |
||
|
Переход концентрический |
45×2,5-32×2,0 |
14 6842 0100 |
00 |
14 6842 3000 |
02 |
14 6842 3300 |
04 |
|
45×4,0-32×4,0 |
14 6842 0102 |
09 |
14 6842 3002 |
00 |
14 6842 3302 |
02 |
|
|
45×2,5-25×1,6 |
14 6842 0104 |
07 |
14 6842 3004 |
09 |
14 6842 3304 |
00 |
|
|
45×4,0-25×3,0 |
14 6842 0106 |
05 |
14 6842 3006 |
07 |
14 6842 3306 |
09 |
|
|
57×4,0-45×2,5 |
14 6842 0108 |
03 |
14 6842 3008 |
05 |
14 6842 3308 |
07 |
|
|
57×5,0-45×4,0 |
14 6842 0110 |
09 |
14 6842 3010 |
00 |
14 6842 3310 |
02 |
|
|
57×4,0-38×2,0 |
14 6842 0112 |
07 |
14 6842 3012 |
09 |
14 6842 3312 |
00, |
|
|
57×5,0-38×4,0 |
14 6842 0114 |
05 |
14 6842 3014 |
07 |
14 6842 3314 |
09 |
|
|
57×4,0-32×2,0 |
14 6842 0116 |
03 |
14 6842 3016 |
05 |
14 6842 3316 |
07 |
|
|
57×5,0-32×3,0 |
14 6842 0118 |
02 |
14 6842 3018 |
03 |
14 6842 3318 |
05 |
|
|
57×4,0-25×1,6 |
14 6842 0120 |
07 |
14 6842 3020 |
09 |
14 6842 3320 |
00 |
|
|
57×5,0-25×3,0 |
14 6842 0122 |
05 |
14 6842 3022 |
07 |
14 6842 3322 |
09 |
|
|
76×3,5-57×3,0 |
14 6842 0124 |
03 |
14 6842 3024 |
05 |
14 6842 3324 |
07 |
|
|
76×6,0-57×5,0 |
14 6842 0126 |
01 |
14 6842 3026 |
03 |
14 6842 3326 |
05 |
|
|
76×3,5-45×2,5 |
14 6842 0128 |
04 |
14 6842 3028 |
01 |
14 6842 3328 |
03 |
|
|
76×6,0-45×4,0 |
14 6842 0130 |
05 |
14 6842 3030 |
07 |
14 6842 3330 |
09 |
|
|
76×3,5-38×2,5 |
14 6842 0132 |
03 |
14 6842 3032 |
05 |
14 6842 3332 |
07 |
|
|
76×6,0-38×3,0 |
14 6842 0134 |
01 |
14 6842 3034 |
03 |
14 6842 3334 |
05 |
|
|
89×3,5-76×3,5 |
14 6842 0136 |
01 |
14 6842 3036 |
01 |
14 6842 3336 |
03 |
|
|
89×6,0-76×5,0 |
14 6842 0138 |
08 |
14 6842 3038 |
00 |
14 6842 3338 |
01 |
|
|
89×8,0-76×6,0 |
14 6842 0140 |
03 |
14 6842 3040 |
05 |
14 6842 3340 |
07 |
|
|
89×3,5-57×3,0 |
14 6842 0142 |
01 |
14 6842 3042 |
03 |
14 6842 3342 |
05 |
|
|
89×6,0-57×4,0 |
14 6842 0144 |
09 |
14 6842 3043 |
02 |
14 6842 3343 |
01 |
|
|
89×8,0-57×5,0 |
14 6842 0146 |
08 |
14 6842 3044 |
01 |
14 6842 3344 |
03 |
|
|
89×3,5-45×2,5 |
14 6842 0148 |
06 |
14 6842 3046 |
08 |
14 6842 3346 |
01 |
|
|
89×6,0-45×4,0 |
14 6842 0150 |
01 |
14 6842 3048 |
08 |
14 6842 3348 |
09 |
|
|
108×4,0-89×3,5 |
14 6842 0152 |
06 |
14 6842 3050 |
03 |
14 6842 3350 |
05 |
|
|
108×6,0-89×6,0 |
14 6842 0154 |
08 |
14 6842 3052 |
01 |
14 6842 3352 |
03 |
|
|
108×4,0-76×3,5 |
14 6842 0156 |
06 |
14 6842 3054 |
05 |
14 6842 3354 |
01 |
|
|
108×6,0-76×5,0 |
14 6842 0158 |
04 |
14 6842 3056 |
08 |
14 6842 3356 |
06 |
|
|
108×4,0-57×3,0 |
14 6842 0160 |
03 |
14 6842 3068 |
06 |
14 6842 3358 |
08 |
|
|
108×6,0-57×4,0 |
14 6842 0162 |
08 |
14 6842 3060 |
01 |
14 6842 3360 |
03 |
|
|
133×5,0-108×4,0 |
14 6842 0164 |
06 |
14 6842 3062 |
02 |
14 6842 3362 |
01 |
|
|
133×8,0-108×6,0 |
14 6842 0166 |
04 |
14 6842 3064 |
08 |
14 6842 3364 |
03 |
|
|
133×4,0-89×3,5 |
14 6842 0168 |
02 |
14 6842 3066 |
06 |
14 6842 3366 |
08 |
|
|
133×6,0-89×5,0 |
14 6842 0170 |
08 |
14 6842 3068 |
04 |
14 6842 3368 |
06 |
|
|
133×8,0-89×6,0 |
14 6842 0172 |
06 |
14 6842 3070 |
00 |
14 6842 3370 |
01 |
|
|
133×5,0-76×3,5 |
14 6842 0174 |
04 |
14 6842 3072 |
08 |
14 6842 3372 |
00 |
|
|
133×8,0-76×5,0 |
14 6842 0176 |
02 |
14 6842 3074 |
06 |
14 6842 3374 |
08 |
|
|
133×4,0-57×3,0 |
14 6842 0178 |
00 |
14 6842 3076 |
04 |
14 6842 3376 |
06 |
|
|
133×8,0-57×4,0 |
14 6842 0180 |
06 |
14 6842 3078 |
02 |
14 6842 3378 |
04 |
|
|
159×4,5-133×4,0 |
14 6842 0182 |
04 |
14 6842 3080 |
08 |
14 6842 3380 |
08 |
|
|
159×8,0-133×8,0 |
14 6842 0184 |
02 |
14 6842 3082 |
06 |
14 6842 3382 |
08 |
|
|
159×4,5-108×4,0 |
14 6842 0186 |
00 |
14 6842 3084 |
04 |
14 6842 3384 |
06 |
|
|
159×8,0-108×6,0 |
14 6842 0188 |
09 |
14 6842 3086 |
02 |
14 6842 3386 |
04 |
|
|
159×4,5-89×3,5 |
14 6842 0190 |
04 |
14 6842 3088 |
00 |
14 6842 3388 |
02 |
|
|
159×8,0-89×6,0 |
14 6842 0192 |
02 |
14 6842 3090 |
06 |
14 6842 3390 |
08 |
|
|
159×4,5-76×3,5 |
14 6842 0194 |
00 |
14 6842 3092 |
04 |
14 6842 3392 |
06 |
|
|
159×8,0-76×4,0 |
14 6842 0196 |
09 |
14 6842 3094 |
02 |
14 6842 3394 |
04 |
|
|
159×4,5-57×3,0 |
14 6842 0198 |
07 |
14 6842 3096 |
00 |
14 6842 3396 |
02 |
|
|
159×8,0-57×4,0 |
14 6842 0200 |
08 |
14 6842 3098 |
09 |
14 6842 3398 |
00 |
|
|
219×6,0-159×4,5 |
14 6842 0202 |
06 |
14 6842 3100 |
02 |
14 6842 3400 |
01 |
|
|
219×10,0-159×8,0 |
14 6842 0204 |
04 |
14 6842 3102 |
08 |
14 6842 3402 |
03 |
|
|
219×6,0-133×4,0 |
14 6842 0206 |
02 |
14 6842 3104 |
06 |
14 6842 3404 |
04 |
|
|
219×10,0-133×8,0 |
14 6842 0208 |
00 |
14 6842 3106 |
04 |
14 6842 3406 |
06 |
|
|
219×6,0-108×4,0 |
14 6842 0210 |
06 |
14 6842 3108 |
02 |
14 6842 3408 |
04 |
|
|
219×10,0-108×6,0 |
14 6842 0212 |
04 |
14 6842 3110 |
08 |
14 6842 3410 |
00 |
|
|
219×6,0-89×3,5 |
14 6842 0214 |
02 |
14 6842 3112 |
06 |
14 6842 3412 |
08 |
|
|
219×10,0-89×5,0 |
14 6842 0216 |
00 |
14 6842 3114 |
04 |
14 6842 3414 |
06 |
|
|
219×6,0-76×3,5 |
14 6842 0218 |
09 |
14 6842 3116 |
02 |
14 6842 3416 |
04 |
|
|
219×10,0-76×5,0 |
14 6842 0220 |
04 |
14 6842 3118 |
00 |
14 6842 3418 |
02 |
|
|
219×6,0-57×3,0 |
14 6842 0222 |
02 |
14 6842 3120 |
06 |
14 6842 3420 |
08 |
|
|
219×10,0-57×4,0 |
14 6842 0224 |
00 |
14 6842 3122 |
04 |
14 6842 3422 |
06 |
|
|
273×7,0-219×6,0 |
14 6842 0226 |
09 |
14 6842 3124 |
02 |
14 6842 3424 |
04 |
|
|
273×10,0-219×8,0 |
14 6842 0228 |
07 |
14 6842 3126 |
00 |
14 6842 3426 |
02 |
|
|
273×12,0-219×10,0 |
14 6842 0230 |
02 |
14 6842 3128 |
09 |
14 6842 3428 |
00 |
|
|
273×7,0-159×4,5 |
14 6842 0232 |
00 |
14 6842 3130 |
04 |
14 6842 3430 |
06 |
|
|
273×10,0-159×6,0 |
14 6842 0234 |
09 |
14 6842 3132 |
02 |
14 6842 3432 |
04 |
|
|
273×12,0-159×10,0 |
14 6842 0236 |
07 |
14 6842 3134 |
00 |
14 6842 3434 |
02 |
|
|
273×8,0-133×4,0 |
14 6842 0238 |
05 |
14 6842 3136 |
09 |
14 6842 3436 |
00 |
|
|
273×10,0-133×6,0 |
14 6842 0240 |
00 |
14 6842 3138 |
07 |
14 6842 3438 |
09 |
|
|
273×8,0-108×4,0 |
14 6842 0242 |
09 |
14 6842 3140 |
02 |
14 6842 3440 |
04 |
|
|
273×10,0-108×5,0 |
14 6842 0244 |
07 |
14 6842 3142 |
00 |
14 6842 3442 |
02 |
|
|
325×8,0-273×8,0 |
14 6842 0246 |
05 |
14 6842 3144 |
09 |
14 6842 3444 |
00 |
|
|
325×10,0-273×10,0 |
14 6842 0248 |
03 |
14 6842 3146 |
07 |
14 6842 3446 |
09 |
|
|
325×12,0-273×12,0 |
14 6842 0250 |
09 |
14 6842 3148 |
05 |
14 6842 3448 |
07 |
|
|
325×10,0-219×8,0 |
14 6842 0252 |
07 |
14 6842 3150 |
00 |
14 6842 3450 |
02 |
|
|
325×12,0-219×10,0 |
14 6842 0254 |
05 |
14 6842 3152 |
09 |
14 6842 3452 |
00 |
|
|
325×8,0-159×4,6 |
14 6842 0256 |
03 |
14 6842 3154 |
07 |
14 6842 3454 |
09 |
|
|
325×12,0-159×8,0 |
14 6842 0258 |
01 |
14 6842 3156 |
05 |
14 6842 3456 |
07 |
|
|
325×8,0-133×5,0 |
14 8642 0260 |
07 |
14 6842 3158 |
03 |
14 6842 3458 |
05 |
|
|
325×12,0-133×8,0 |
14 6842 0262 |
05 |
14 6842 3160 |
09 |
14 6842 3460 |
00 |
|
|
325×10,0-108×4,0 |
14 6842 0264 |
03 |
14 6842 3162 |
07 |
14 6842 3462 |
09 |
|
|
325×12,0-108×6,0 |
14 6842 0266 |
01 |
14 6842 3164 |
05 |
14 6842 3464 |
07 |
|
|
377×10,0-325×8,0 |
14 6842 0267 |
00 |
14 6842 3165 |
04 |
14 6842 3465 |
06 |
|
|
377×12,0-325×10,0 |
14 6842 0268 |
07 |
14 6842 3166 |
03 |
14 6842 3466 |
05 |
|
|
377×16,0-325×16,0 |
14 6842 0270 |
05 |
14 6842 3168 |
01 |
14 6842 3467 |
04 |
|
|
377×10,0-273×8,0 |
14 6842 0271 |
04 |
14 6842 3169 |
00 |
14 6842 3468 |
03 |
|
|
377×12,0-273×10,0 |
14 6842 0272 |
03 |
14 6842 3170 |
07 |
14 6842 3469 |
02 |
|
|
377×14-325×12,0 |
14 6842 0273 |
02 |
14 6842 3167 |
02 |
14 6842 3457 |
06 |
|
|
377×16,0-273×12,0 |
14 6842 0274 |
01 |
14 6842 3172 |
05 |
14 6842 3470 |
09 |
|
|
377×14-273×12,0 |
14 6842 0275 |
00 |
14 6842 3171 |
06 |
14 6842 3459 |
04 |
|
|
377×12,0-219×8,0 |
14 6842 0276 |
04 |
14 6842 3174 |
03 |
14 6842 3471 |
08 |
|
|
377×16,0-219×10,0 |
14 6842 0278 |
08 |
14 6842 3176 |
01 |
14 6842 3472 |
07 |
|
|
377×12,0-159×6,0 |
14 6842 0280 |
03 |
14 6842 3178 |
03 |
14 6842 3473 |
06 |
|
|
377×16,0-159×8,0 |
14 6842 0282 |
01 |
14 6842 3180 |
05 |
14 6842 3474 |
05 |
|
|
426×10,0-377×10,0 |
14 6842 0284 |
01 |
14 6842 3182 |
03 |
14 6842 3475 |
04 |
|
|
426×12,0-377×12,0 |
- |
- |
- |
- |
14 6842 3476 |
03 |
|
|
426×16,0-377×16,0 |
14 6842 0286 |
08 |
14 6842 3184 |
01 |
14 6842 3477 |
02 |
|
|
426×14-377×14,0 |
14 6842 0287 |
07 |
14 6842 3181 |
04 |
14 6842 3461 |
10 |
|
|
426×10,0-325×8,0 |
14 6842 0288 |
06 |
14 6842 3186 |
00 |
14 6842 3478 |
01 |
|
|
426×14-325×12,0 |
14 6842 0289 |
05 |
14 6842 3183 |
02 |
14 6842 3463 |
08 |
|
|
426×12,0-325×10,0 |
- |
- |
- |
- |
14 6842 3479 |
00 |
|
|
426×16,0-325×12,0 |
14 6842 0290 |
01 |
14 6842 3188 |
08 |
14 6842 3480 |
07 |
|
|
426×12,0-273×8,0 |
14 6842 0292 |
09 |
14 6842 3190 |
03 |
14 6842 3481 |
06 |
|
|
426×12,0-273×10,0 |
- |
- |
- |
- |
14 6842 3482 |
05 |
|
|
426×16,0-273×10,0 |
14 6842 0294 |
08 |
14 6842 3192 |
01 |
14 6842 3483 |
04 |
|
|
426×12,0-219×6,0 |
14 6842 0296 |
06 |
14 6842 3194 |
08 |
14 6842 3484 |
03 |
|
|
426×12,0-219×8,0 |
- |
- |
- |
14 6842 3485 |
02 |
||
|
426×16,0-219×10,0 |
14 6842 0298 |
04 |
14 6842 3196 |
08 |
14 6842 3486 |
01 |
|
|
426×12,0-159×8,0 |
14 6842 0300 |
05 |
14 6842 3198 |
06 |
14 6842 3487 |
00 |
|
|
426×16,0-159×10,0 |
14 6842 0302 |
03 |
14 6842 3200 |
07 |
14 6842 3488 |
10 |
|
|
530×14,0-426×12,0 |
14 6842 0304 |
01 |
14 6842 3202 |
05 |
14 6842 3489 |
09 |
|
|
530×16,0-426×16,0 |
- |
- |
- |
- |
14 6842 3490 |
05 |
|
|
530×14,0-377×12,0 |
14 6842 0306 |
10 |
14 6842 3204 |
08 |
14 6842 3491 |
04 |
|
|
530×16,0-377×16,0 |
- |
- |
- |
- |
14 6842 3492 |
03 |
|
|
530×12-426×12,0 |
14 6842 0308 |
08 |
14 6842 3206 |
01 |
14 6842 3493 |
02 |
|
|
530×16-426×16,0 |
14 6842 0310 |
03 |
14 6842 3208 |
10 |
14 6842 3494 |
01 |
|
|
530×12-377×12,0 |
14 6842 0312 |
01 |
14 6842 3210 |
05 |
14 6842 3495 |
00 |
|
|
530×16-377×16,0 |
14 6842 0314 |
10 |
14 6842 3212 |
03 |
14 6842 3496 |
10 |
|
|
Переход эксцентрический |
45×2,5-32×2,0 |
14 6842 0500 |
04 |
14 6842 3500 |
09 |
14 6842 3800 |
00 |
|
45×4,0-32×4,0 |
14 6842 0502 |
08 |
14 6842 3502 |
07 |
14 6842 3802 |
09 |
|
|
45×2,5-25×1,6 |
14 6842 0504 |
06 |
14 6842 3504 |
05 |
14 6842 3804 |
07 |
|
|
45×4,0-25×3,0 |
14 6842 0506 |
04 |
14 6842 3506 |
03 |
14 6842 3806 |
05 |
|
|
57×4,0-45×2,5 |
14 6842 0508 |
02 |
14 6842 3508 |
01 |
14 6842 3808 |
03 |
|
|
57×5,0-45×4,0 |
14 6842 0510 |
08 |
14 6842 3510 |
07 |
14 6842 3810 |
09 |
|
|
57×4,0-38×2,0 |
14 6842 0512 |
06 |
14 6842 3512 |
05 |
14 6842 3812 |
07 |
|
|
57×5,0-38×4,0 |
14 6842 0514 |
04 |
14 6842 3514 |
03 |
14 6842 3814 |
05 |
|
|
57×4,0-32×2,0 |
14 6842 0516 |
02 |
14 6842 3516 |
01 |
14 6842 3816 |
03 |
|
|
57×5,0-32×3,0 |
14 6842 0518 |
00 |
14 6842 3518 |
04 |
14 6842 3818 |
01 |
|
|
57×4,0-25×1,6 |
14 6842 0520 |
06 |
14 6842 3520 |
05 |
14 6842 3820 |
07 |
|
|
57×5,0-25×3,0 |
14 6842 0522 |
04 |
14 6842 3522 |
03 |
14 6842 3822 |
05 |
|
|
76×3,5-57×3,0 |
14 6842 0524 |
02 |
14 6842 3524 |
01 |
14 6842 3824 |
03 |
|
|
76×6,0-57×5,0 |
14 6842 0526 |
00 |
14 6842 3526 |
01 |
14 6842 3826 |
01 |
|
|
76×3,5-45×2,5 |
14 6842 0528 |
09 |
14 6842 3528 |
08 |
14 6842 3828 |
02 |
|
|
76×6,0-45×4,0 |
14 6842 0530 |
04 |
14 6842 3530 |
03 |
14 6842 3830 |
05 |
|
|
76×3,5-38×2,5 |
14 6842 0532 |
02 |
14 6842 3532 |
01 |
14 6842 3832 |
03 |
|
|
76×6,0-38×3,0 |
14 6842 0534 |
00 |
14 6842 3534 |
09 |
14 6842 3834 |
01 |
|
|
89×3,5-76×3,5 |
14 6842 0536 |
09 |
14 6842 3536 |
08 |
14 6842 3836 |
00 |
|
|
89×6,0-76×5,0 |
14 6842 0538 |
07 |
14 6842 3538 |
06 |
14 6842 3838 |
08 |
|
|
89×8,0-76×6,0 |
14 6842 0540 |
02 |
14 6842 3540 |
01 |
14 6842 3840 |
03 |
|
|
89×3,5-57×3,0 |
14 6842 0642 |
00 |
14 6842 3542 |
06 |
14 6842 3842 |
01 |
|
|
89×6,0-57×4,0 |
14 6842 0544 |
09 |
14 6842 3544 |
08 |
14 6842 3844 |
07 |
|
|
89×8,0-57×5,0 |
14 6842 0546 |
07 |
14 6842 3546 |
06 |
14 6842 3846 |
08 |
|
|
89×3,5-45×2,5 |
14 6842 0548 |
05 |
14 6842 3548 |
04 |
14 6842 3848 |
06 |
|
|
89×6,0-45×4,0 |
14 6842 0550 |
00 |
14 6842 3550 |
03 |
14 6842 3850 |
01 |
|
|
108×4,0-89×3,5 |
14 6842 0652 |
09 |
14 6842 3552 |
08 |
14 6842 3852 |
04 |
|
|
108×6,0-89×6,0 |
14 6842 0554 |
07 |
14 6842 3554 |
06 |
14 6842 3854 |
08 |
|
|
108×4,0-76×3,5 |
14 6842 0656 |
05 |
14 6842 3556 |
04 |
14 6842 3856 |
06 |
|
|
108×6,0-76×5,0 |
14 6842 0558 |
03 |
14 6842 3558 |
02 |
14 6842 3858 |
04 |
|
|
108×4,0-57×3,0 |
14 6842 0560 |
09 |
14 6842 3560 |
08 |
14 6842 3860 |
01 |
|
|
108×6,0-57×4,0 |
14 6842 0562 |
07 |
14 6842 3562 |
06 |
14 6842 3862 |
08 |
|
|
133×5,0-108×4,0 |
14 6842 0564 |
05 |
14 6842 3564 |
04 |
14 6842 3864 |
06 |
|
|
133×8,0-108×6,0 |
14 6842 0566 |
03 |
14 6842 3566 |
02 |
14 6842 3866 |
04 |
|
|
133×4,0-89×3,5 |
14 6842 0568 |
01 |
14 6842 3568 |
00 |
14 6842 3868 |
02 |
|
|
133×6,0-89×5,0 |
14 6842 0670 |
07 |
14 6842 3570 |
06 |
14 6842 3870 |
08 |
|
|
133×8,0-89×6,0 |
14 6842 0572 |
05 |
14 6842 3572 |
04 |
14 6842 3872 |
06 |
|
|
133×5,0-76×3,5 |
14 6842 0574 |
03 |
14 6842 3574 |
02 |
14 6842 3874 |
04 |
|
|
133×8,0-76×5,0 |
14 6842 0576 |
01 |
14 6842 3576 |
00 |
14 6842 3876 |
02 |
|
|
133×4,0-57×3,0 |
14 6842 0578 |
05 |
14 6842 3578 |
09 |
14 6842 3878 |
00 |
|
|
133×8,0-57×4,0 |
14 6842 0580 |
05 |
14 6842 3580 |
04 |
14 6842 3880 |
06 |
|
|
159×4,5-133×4,0 |
14 6842 0582 |
03 |
14 6842 3582 |
02 |
14 6842 3882 |
04 |
|
|
159×8,0-133×8,0 |
14 6842 0584 |
01 |
14 6842 3584 |
00 |
14 6842 3884 |
02 |
|
|
159×4,5-108×4,0 |
14 6842 0586 |
02 |
14 6842 3586 |
09 |
14 6842 3886 |
00 |
|
|
159×8,0-108×6,0 |
14 6842 0588 |
08 |
14 6842 3588 |
07 |
14 6842 3888 |
09 |
|
|
159×4,5-89×3,5 |
14 6842 0590 |
03 |
14 6842 3590 |
02 |
14 6842 3890 |
04 |
|
|
159×8,0-89×6,0 |
14 6842 0592 |
01 |
14 6842 3592 |
00 |
14 6842 3892 |
02 |
|
|
159×4,5-76×3,5 |
14 6842 0594 |
00 |
14 6842 3594 |
09 |
14 6842 3894 |
00 |
|
|
159×8,0-76×4,0 |
14 6842 0596 |
0,8 |
14 6842 3596 |
07 |
14 6842 3896 |
09 |
|
|
159×4,5-57×3,0 |
14 6842 0598 |
06 |
14 6842 3598 |
05 |
14 6842 3898 |
07 |
|
|
159×8,0-57×4,0 |
14 6842 0600 |
07 |
14 6842 3600 |
06 |
14 6842 3900 |
08 |
|
|
219×6,0-159×4,5 |
14 6842 0602 |
05 |
14 6842 3602 |
04 |
14 6842 3902 |
06 |
|
|
219×10,0-159×8,0 |
14 6842 0604 |
03 |
14 6842 3604 |
02 |
14 6842 3904 |
04 |
|
|
219×6,0-133×4,0 |
14 6842 0606 |
01 |
14 6842 3606 |
00 |
14 6842 3906 |
02 |
|
|
219×10,0-133×8,0 |
14 6842 0608 |
08 |
14 6842 3608 |
09 |
14 6842 3908 |
00 |
|
|
219×6,0-108×4,0 |
14 6842 0610 |
05 |
14 6842 3610 |
04 |
14 6842 3910 |
06 |
|
|
219×10,0-108×6,0 |
14 6842 0612 |
03 |
14 6842 3612 |
02 |
14 6842 3912 |
04 |
|
|
219×6,0-89×3,5 |
14 6842 0614 |
01 |
14 6842 3614 |
00 |
14 6842 3914 |
02 |
|
|
219×10,0-89×5,0 |
14 6842 0616 |
05 |
14 6842 3616 |
09 |
14 6842 3916 |
00 |
|
|
219×6,0-76×3,5 |
14 6842 0618 |
08 |
14 6842 3618 |
07 |
14 6842 3918 |
09 |
|
|
219×10,0-76×5,0 |
14 6842 0620 |
03 |
14 6842 3620 |
02 |
14 6842 3920 |
04 |
|
|
219×6,0-57×3,0 |
14 6842 0622 |
01 |
14 6842 3622 |
00 |
14 6842 3922 |
03 |
|
|
219×10,0-57×4,0 |
14 6842 0624 |
02 |
14 6842 3624 |
09 |
14 6842 3924 |
00 |
|
|
273×7,0-219×6,0 |
14 6842 0626 |
08 |
14 6842 3626 |
07 |
14 6842 3926 |
09 |
|
|
273×10,0-219×8,0 |
14 6842 0628 |
06 |
14 6842 3628 |
05 |
14 6842 3928 |
07 |
|
|
273×12,0-219×10,0 |
14 6842 0630 |
01 |
14 6842 3630 |
00 |
14 6842 3930 |
02 |
|
|
273×7,0-159×4,5 |
14 6842 0632 |
00 |
14 6842 3632 |
09 |
14 6842 3932 |
00 |
|
|
273×10,0-159×6,0 |
14 6842 0634 |
08 |
14 6842 3634 |
07 |
14 6842 3934 |
09 |
|
|
273×12,0-159×10,0 |
14 6842 0636 |
06 |
14 6842 3636 |
05 |
14 6842 3936 |
07 |
|
|
273×8,0-133×4,0 |
14 6842 0638 |
04 |
14 6842 3638 |
03 |
14 6842 3938 |
05 |
|
|
273×10,0-133×6,0 |
14 6842 0640 |
07 |
14 6842 3640 |
09 |
14 6842 3940 |
00 |
|
|
273×8,0-108×4,0 |
14 6842 0642 |
08 |
14 6842, 3642 |
07 |
14 6842 3942 |
09 |
|
|
273×10,0-108×5,0 |
14 6842 0644 |
06 |
14 6842 3644 |
05 |
14 6842 3944 |
07 |
|
|
325×8,0-273×8,0 |
14 6842 0648 |
02 |
14 6842 3646 |
03 |
14 6842 3946 |
05 |
|
|
325×10,0-273×10,0 |
14 6842 0640 |
08 |
14 6842 3648 |
01 |
14 6842 3948 |
03 |
|
|
325×12,0-273×12,0 |
14 6842 0652 |
06 |
14 6842 3650 |
07 |
14 6842 3950 |
00 |
|
|
325×10,0-219×8,0 |
14 6842 0654 |
04 |
14 6842 3652 |
05 |
14 6842 3952 |
07 |
|
|
325×12,0-219×10,0 |
14 6842 0656 |
02 |
14 6842 3654 |
03 |
14 6842 3954 |
05 |
|
|
325×8,0-159×4,5 |
14 6842 0658 |
00 |
14 6842 3656 |
01 |
14 6842 3956 |
03 |
|
|
325×12,0-159×8,0 |
14 6842 0660 |
06 |
14 6842 3658 |
07 |
14 6842 3958 |
01 |
|
|
325×8,0-133×5,0 |
14 6842 0662 |
04 |
14 6842 3660 |
05 |
14 6842 3960 |
07 |
|
|
325×12,0-133×8,0 |
14 6842 0664 |
02 |
14 6842 3662 |
03 |
14 6842 3962 |
05 |
|
|
325×10,0-108×4,0 |
14 6842 0666 |
00 |
14 6842 3664 |
01 |
14 6842 3964 |
03 |
|
|
325×12,0-108×6,0 |
14 6842 0668 |
09 |
14 6842 3666 |
04 |
14 6842 3966 |
01 |
|
|
377×10,0-325×8,0 |
14 6842 0669 |
08 |
14 6842 3667 |
09 |
14 6842 3967 |
00 |
|
|
377×12,0-325×10,0 |
14 6842 0670 |
04 |
14 6842 3668 |
08 |
14 6842 3968 |
05 |
|
|
377×16,0-325×16,0 |
14 6842 0672 |
02 |
14 6842 3670 |
03 |
14 6842 3970 |
05 |
|
|
377×10,0-273×8,0 |
14 6842 0673 |
01 |
14 6842 3671 |
02 |
14 6842 3971 |
04 |
|
|
377×12,0-273×10,0 |
14 6842 0674 |
00 |
14 6842 3672 |
01 |
14 6842 3972 |
03 |
|
|
377×14-325×12,0 |
14 6842 0675 |
10 |
14 6842 3673 |
00 |
14 6842 3967 |
00 |
|
|
377×16,0-273×12,0 |
14 6842 0676 |
09 |
14 6842 3674 |
01 |
14 6842 3974 |
01 |
|
|
377×14-273×12,0 |
14 6842 0677 |
08 |
14 6842 3675 |
09 |
14 6842 3973 |
02 |
|
|
377×12,0-219×8,0 |
14 6842 0678 |
07 |
14 6842 3676 |
08 |
14 6842 3976 |
02 |
|
|
377×16,0-219×10,0 |
14 6842 0680 |
02 |
14 6842 3678 |
06 |
14 6842 3978 |
08 |
|
|
377×12,0-159×6,0 |
14 6842 0682 |
00 |
14 6842 3680 |
01 |
14 6842 3980 |
03 |
|
|
377×16,0-159×8,0 |
14 6842 0684 |
09 |
14 6842 3682 |
09 |
14 6842 3982 |
01 |
|
|
426×10,0-377×10,0 |
14 6842 0686 |
07 |
14 6842 3684 |
08 |
14 6842 3983 |
00 |
|
|
426×12,0-377×12,0 |
- |
- |
- |
- |
14 6842 3984 |
00 |
|
|
426×16,0-377×16,0 |
14 6842 0688 |
05 |
14 6842 3686 |
06 |
14 6842 3986 |
08 |
|
|
426×14-377×14,0 |
14 6842 0689 |
04 |
14 6842 3695 |
05 |
14 6842 3985 |
09 |
|
|
426×10,0-325×8,0 |
14 6842 0690 |
00 |
14 6842 3688 |
04 |
14 6842 3988 |
06 |
|
|
426×12,0-325×10,0 |
- |
- |
- |
- |
14 6842 3989 |
05 |
|
|
426×14-325×12,0 |
14 6842 0691 |
10 |
14 6842 3697 |
03 |
14 6842 3987 |
07 |
|
|
426×16,0-325×12,0 |
14 6842 0692 |
09 |
14 6842 3690 |
06 |
14 6842 3990 |
01 |
|
|
426×12,0-273×8,0 |
14 6842 0694 |
07 |
14 6842 3692 |
08 |
14 6842 3992 |
07 |
|
|
426×12,0-273×10,0 |
- |
- |
- |
- |
14 6842 3993 |
09 |
|
|
426×16,0-273×10,0 |
14 6842 0696 |
05 |
14 6842 3694 |
06 |
14 6842 3994 |
08 |
|
|
426×12,0-219×6,0 |
14 6842 0698 |
03 |
14 6842 3696 |
04 |
14 6842 3996 |
06 |
|
|
426×12,0-219×8,0 |
- |
- |
- |
- |
14 6842 3997 |
05 |
|
|
426×16,0-219×10,0 |
14 6842 0700 |
04 |
14 6842 3698 |
02 |
14 6842 3998 |
04 |
|
|
426×12,0-159×8,0 |
14 6842 0702 |
02 |
14 6842 3700 |
03 |
14 6842 4000 |
09 |
|
|
426×16,0-159×10,0 |
14 6842 0704 |
00 |
14 6842 3702 |
01 |
14 6842 4002 |
07 |
|
|
530×14,0-426×12,0 |
14 6842 0706 |
09 |
14 6842 3704 |
10 |
14 6842 4004 |
05 |
|
|
530×16,0-426×16,0 |
- |
- |
- |
- |
14 6842 4006 |
03 |
|
|
530×14,0-377×12,0 |
14 6842 0708 |
07 |
14 6842 3706 |
08 |
14 6842 4008 |
01 |
|
|
530×16,0-377×16,0 |
- |
- |
- |
- |
14 6842 4010 |
07 |
|
|
530×12-426×12,0 |
14 6842 0710 |
02 |
14 6842 3708 |
06 |
14 6842 4012 |
05 |
|
|
530×16-426×16,0 |
14 6842 0712 |
00 |
14 6842 3710 |
01 |
14 6842 4014 |
03 |
|
|
530×12-377×12,0 |
14 6842 0714 |
09 |
14 6842 3712 |
10 |
14 6842 4016 |
01 |
|
|
530×16-377×16,0 |
14 6842 0716 |
07 |
14 6842 3714 |
08 |
14 6842 4018 |
10 |
|
2. Коды ОКП переходов для трубопроводов пара и горячей воды должны соответствовать указанным в табл. 2.
Таблица 2
|
Обозначение перехода |
Коды ОКП переходов для трубопроводов пара и горячей воды из стали |
||||||
|
20 |
10Г2 |
09Г2С |
|||||
|
Код ОКП |
КЧ |
Код ОКП |
КЧ |
Код ОКП |
КЧ |
||
|
Переход концентрический |
45×2,5-32×2,0 |
14 6842 1000 |
07 |
14 6842 4030 |
03 |
14 6842 4250 |
04 |
|
45×4,0-32×4,0 |
14 6842 1002 |
08 |
14 6842 4032 |
01 |
14 6842 4252 |
02 |
|
|
45×2,5-25×1,6 |
14 6842 1004 |
06 |
14 6842 4034 |
10 |
14 6842 4254 |
00 |
|
|
46×4,0-25×3,0 |
14 6842 1006 |
04 |
14 6842 4036 |
08 |
14 6842 4256 |
09 |
|
|
57×4,0-45×2,5 |
14 6842 1008 |
02 |
14 6842 4038 |
06 |
14 6842 4258 |
07 |
|
|
57×5,0-45×4,0 |
14 6842 1010 |
08 |
14 6842 4040 |
01 |
14 6842 4260 |
02 |
|
|
57×4,0-38×2,0 |
14 6842 1012 |
06 |
14 6842 4042 |
09 |
14 6842 4262 |
00 |
|
|
57×5,0-38×4,0 |
14 6842 1014 |
04 |
14 6842 4044 |
08 |
14 6842 4264 |
09 |
|
|
57×4,0-32×2,0 |
14 6842 1016 |
02 |
14 6842 4046 |
06 |
14 6842 4266 |
07 |
|
|
57×5,0-32×3,0 |
14 6842 1018 |
00 |
14 6842 4048 |
014 |
14 6842 4268 |
05 |
|
|
57×4,0-25×1,6 |
14 6842 1020 |
06 |
14 6842 4050 |
06 |
14 6842 4270 |
00 |
|
|
57×5,0-25×3,0 |
14 6842 1022 |
04 |
14 6842 4052 |
08 |
14 6842 4272 |
09 |
|
|
76×3,5-57×3,0 |
14 6842 1024 |
02 |
14 6842 4054 |
06 |
14 6842 4274 |
07 |
|
|
76×6,0-57×5,0 |
14 6842 1026 |
00 |
14 6842 4066 |
04 |
14 6842 4276 |
05 |
|
|
76×3,5-45×2,5 |
14 6842 1028 |
09 |
14 6842 4058 |
02 |
14 6842 4278 |
03 |
|
|
76×6,0-45×4,0 |
14 6842 1030 |
04 |
14 6842 4060 |
08 |
14 6842 4280 |
09 |
|
|
76×3,5-38×2,5 |
14 6842 1032 |
02 |
14 6842 4062 |
06 |
14 6842 4282 |
07 |
|
|
76×6,0-38×3,0 |
14 6842 1034 |
00 |
14 6842 4064 |
04 |
14 6842 4284 |
05 |
|
|
89×3,5-76×3,5 |
14 6842 1036 |
09 |
14 6842 4066 |
02 |
14 6842 4286 |
03 |
|
|
89×6,0-76×5,0 |
14 6842 1038 |
07 |
14 6842 4068 |
00 |
14 6842 4288 |
01 |
|
|
89×8,0-76×6,0 |
14 6842 1040 |
02 |
14 6842 4070 |
06 |
14 6842 4290 |
07 |
|
|
89×3,5-57×3,0 |
14 6842 1042 |
00 |
14 6842 4072 |
04 |
14 6842 4292 |
05 |
|
|
89×6,0-57×4,0 |
14 6842 1044 |
09 |
14 6842 4074 |
02 |
14 6842 4294 |
03 |
|
|
89×8,0-57×5,0 |
14 6842 1046 |
07 |
14 6842 4076 |
00 |
14 6842 4296 |
01 |
|
|
89×3,5-45×2,5 |
14 6842 1048 |
05 |
14 6842 4078 |
09 |
14 6842 4298 |
02 |
|
|
89×6,0-45×4,0 |
14 6842 1050 |
00 |
14 6842 4080 |
04 |
14 6842 4300 |
00 |
|
|
108×4,0-89×3,5 |
14 6842 1052 |
09 |
14 6842 4082 |
02 |
14 6842 4302 |
09 |
|
|
108×6,0-89×6,0 |
14 6842 1054 |
07 |
14 6842 4084 |
00 |
14 6842 4304 |
07 |
|
|
108×4,0-76×3,5 |
14 6842 1056 |
05 |
14 6842 4086 |
09 |
14 6842 4306 |
05 |
|
|
108×6,0-76×5,0 |
14 6842 1058 |
03 |
14 6842 4088 |
07 |
14 6842 4308 |
03 |
|
|
108×4,0-57×3,0 |
14 6842 1060 |
09 |
14 6842 4000 |
02 |
14 6842 4310 |
09 |
|
|
108×6,0-57×4,0 |
14 6842 1062 |
07 |
14 6842 4092 |
00 |
14 6842 4312 |
07 |
|
|
133×5,0-108×4,0 |
14 6842 1064 |
05 |
14 6842 4094 |
09 |
14 6842 4314 |
05 |
|
|
133×8,0-108×6,0 |
14 6842 1066 |
03 |
14 6842 4096 |
07 |
14 6842 4316 |
03 |
|
|
133×4,0-89×3,5 |
14 6842 1068 |
01 |
14 6842 4098 |
05 |
14 6842 4318 |
01 |
|
|
133×6,0-89×5,0 |
14 6842 1070 |
07 |
14 6842 4100 |
06 |
14 6842 4320 |
07 |
|
|
133×8,0-89×6,0 |
14 6842 1072 |
05 |
14 6842 4102 |
04 |
14 6842 4322 |
05 |
|
|
133×5,0-76×3,5 |
14 6842 1074 |
03 |
14 6842 4104 |
02 |
14 6842 4324 |
03 |
|
|
133×8,0-76×5,0 |
14 6842 1076 |
01 |
14 6842 4106 |
00 |
14 6842 4326 |
01 |
|
|
133×4,0-57×3,0 |
14 6842 1078 |
08 |
14 6842 4108 |
09 |
14 6842 4328 |
05 |
|
|
133×8,0-57×4,0 |
14 6842 1080 |
05 |
14 6842 4110 |
04 |
14 6842 4330 |
05 |
|
|
159×4,5-133×4,0 |
14 6842 1082 |
03 |
14 6842 4112 |
02 |
14 6842 4332 |
03 |
|
|
159×8,0-133×8,0 |
14 6842 1084 |
01 |
14 6842 4114 |
00 |
14 6842 4334 |
01 |
|
|
159×4,5-108×4,0 |
14 6842 1086 |
05 |
14 6842 4116 |
09 |
14 6842 4336 |
02 |
|
|
159×8,0-108×6,0 |
14 6842 1088 |
08 |
14 6842 4118 |
07 |
14 6842 4338 |
08 |
|
|
159×4,5-89×3,5 |
14 6842 1090 |
03 |
14 6842 4120 |
02 |
14 6842 4340 |
03 |
|
|
159×8,0-89×6,0 |
14 6842 1092 |
01 |
14 6842 4122 |
00 |
14 6842 4342 |
01 |
|
|
159×4,5-76×3,5 |
14 6842 1094 |
02 |
14 6842 4124 |
09 |
14 6842 4344 |
02 |
|
|
159×8,0-76×4,0 |
14 6842 1096 |
08 |
14 6842 4126 |
07 |
14 6842 4346 |
08 |
|
|
159×4,5-57×3,0 |
14 6842 1098 |
06 |
14 6842 4128 |
05 |
14 6842 4348 |
06 |
|
|
159×8,0-57×4,0 |
14 6842 1100 |
07 |
14 6842 4130 |
00 |
14 6842 4350 |
01 |
|
|
219×6,0-159×4,5 |
14 6842 1102 |
05 |
14 6842 4132 |
09 |
14 6842 4352 |
07 |
|
|
219×10,0-159×8,0 |
14 6842 1104 |
03 |
14 6842 4134 |
07 |
14 6842 4354 |
08 |
|
|
219×6,0-133×4,0 |
14 6842 1106 |
01 |
14 6842 4136 |
05 |
14 6842 4356 |
06 |
|
|
219×10,0-133×8,0 |
14 6842 1108 |
00 |
14 6842 4138 |
03 |
14 6842 4358 |
04 |
|
|
219×6,0-108×4,0 |
14 6842 1110 |
05 |
14 6842 4140 |
09 |
14 6842 4360 |
04 |
|
|
219×10,0-108×6,0 |
14 6842 1112 |
03 |
14 6842 4142 |
07 |
14 6842 4362 |
08 |
|
|
219×6,0-89×3,5 |
14 6842 1114 |
01 |
14 6842 4144 |
05 |
14 6842 4364 |
06 |
|
|
219×10,0-89×5,0 |
14 6842 1116 |
08 |
14 6842 4146 |
03 |
14 6842 4366 |
04 |
|
|
219×6,0-76×3,5 |
14 6842 1118 |
08 |
14 6842 4148 |
01 |
14 6842 4368 |
02 |
|
|
219×10,0-76×5,0 |
14 6842 1120 |
03 |
14 6842 4150 |
07 |
14 6842 4370 |
08 |
|
|
219×6,0-57×3,0 |
14 6842 1122 |
01 |
14 6842 4152 |
05 |
14 6842 4372 |
06 |
|
|
219×10,0-57×4,0 |
14 6842 1124 |
05 |
14 6842 4154 |
03 |
14 6842 4374 |
04 |
|
|
273×7,0-219×6,0 |
14 6842 1126 |
08 |
14 6842 4156 |
01 |
14 6842 4376 |
02 |
|
|
273×10,0-219×8,0 |
14 6842 1128 |
06 |
14 6842 4158 |
00 |
14 6842 4378 |
00 |
|
|
273×12,0-219×10,0 |
14 6842 1130 |
01 |
14 6842 4160 |
05 |
14 6842 4380 |
06 |
|
|
273×7,0-159×4,5 |
14 6842 1132 |
02 |
14 6842 4162 |
03 |
14 6842 4382 |
04 |
|
|
273×10,0-159×6,0 |
14 6842 1134 |
08 |
14 6842 4164 |
01 |
14 6842 4384 |
02 |
|
|
273×12,0-159×10,0 |
14 6842 1136 |
06 |
14 6842 4166 |
07 |
14 6842 4386 |
00 |
|
|
273×8,0-133×4,0 |
14 6842 1138 |
04 |
14 6842 4168 |
08 |
14 6842 4388 |
09 |
|
|
273×10,0-133×6,0 |
14 6842 1140 |
00 |
14 6842 4170 |
03 |
14 6842 4390 |
04 |
|
|
273×8,0-108×4,0 |
14 6842 1142 |
08 |
14 6842 4172 |
01 |
14 6842 4392 |
02 |
|
|
273×10,0-108×5,0 |
14 6842 1144 |
06 |
14 6842 4174 |
04 |
14 6842 4394 |
00 |
|
|
325×8,0-273×8,0 |
14 6842 1146 |
04 |
14 6849 4176 |
08 |
14 6842 4396 |
09 |
|
|
325×10,0-273×10,0 |
14 6842 1148 |
02 |
14 6842 4178 |
06 |
14 6842 4398 |
07 |
|
|
325×12,0-273×12,0 |
14 6842 1150 |
08 |
14 6842 4180 |
01 |
14 6842 4400 |
08 |
|
|
325×10,0-219×8,0 |
14 6842 1152 |
06 |
14 6842 4182 |
01 |
14 6842 4402 |
06 |
|
|
325×12,0-219×10,0 |
14 6842 1154 |
04 |
14 6842 4184 |
08 |
14 6842 4404 |
04 |
|
|
325×8,0-159×4,5 |
14 6842 1156 |
02 |
14 6842 4186 |
06 |
14 6842 4406 |
02 |
|
|
325×12,0-159×8,0 |
14 6842 1158 |
00 |
14 6842 4188 |
04 |
14 6842 4408 |
00 |
|
|
325×8,0-133×5,0 |
14 6842 1160 |
06 |
14 6842 4190 |
03 |
14 6842 4410 |
06 |
|
|
325×12,0-133×8,0 |
14 6842 1162 |
04 |
14 6842 4192 |
08 |
14 6842 4412 |
04 |
|
|
325×10,0-108×4,0 |
14 6842 1164 |
02 |
14 6842 4194 |
06 |
14 6812 4414 |
02 |
|
|
325×12,0-108×6,0 |
14 6842 1166 |
00 |
14 6842 4196 |
04 |
14 6842 4416 |
00 |
|
|
377×10,0-325×8,0 |
14 6842 1167 |
10 |
14 6842 4198 |
02 |
14 6842 4418 |
09 |
|
|
377×12,0-325×10,0 |
14 6842 1168 |
09 |
14 6842 4200 |
08 |
14 6842 4420 |
04 |
|
|
377×16,0-325×16,0 |
14 6842 1170 |
04 |
14 6842 4202 |
01 |
14 6842 4422 |
02 |
|
|
377×10,0-273×8,0 |
14 6842 1171 |
03 |
14 6842 4204 |
07 |
14 6842 4424 |
00 |
|
|
377×12,0-273×10,0 |
14 6842 1172 |
02 |
14 6842 4206 |
06 |
14 6842 4426 |
09 |
|
|
377×16,0-273×12,0 |
14 6842 1174 |
00 |
14 6842 4208 |
06 |
14 6842 4428 |
07 |
|
|
377×12,0-219×8,0 |
14 6842 1176 |
09 |
14 6842 4210 |
01 |
14 6842 4430 |
02 |
|
|
377×16,0-219×10,0 |
14 ,6842 1178 |
07 |
14 6842 4212 |
04 |
14 6842 4432 |
00 |
|
|
377×12,0-159×6,0 |
14 6842 1180 |
02 |
14 6842 4214 |
08 |
14 6842 4434 |
09 |
|
|
377×14-325×12 |
14 6842 1181 |
01 |
14 6842 4215 |
07 |
14 6842 4435 |
08 |
|
|
377×16,0-159×8,0 |
14 6842 1182 |
00 |
14 6842 4216 |
06 |
14 6842 4436 |
07 |
|
|
377×14-27.3×12 |
14 6842 1183 |
10 |
14 6842 4217 |
05 |
14 6842 4437 |
06 |
|
|
426×10,0-377×10,0 |
14 6842 1184 |
09 |
14 6842 4218 |
04 |
14 6842 4438 |
05 |
|
|
426×12,0-377×12,0 |
- |
- |
- |
- |
14 6842 4440 |
00 |
|
|
426×14-377×14 |
14 6842 1185 |
08 |
14 6842 4219 |
03 |
14 6842 4441 |
03 |
|
|
426×16,0-377×16,0 |
14 6842 1186 |
07 |
14 6842 4220 |
10 |
14 6842 4442 |
09 |
|
|
426×14-325×12 |
14 6842 1187 |
06 |
14 6842 4221 |
09 |
14 6842 4443 |
08 |
|
|
426×10,0-325×8,0 |
14 6842 1188 |
05 |
14 6842 4222 |
08 |
14 6842 4444 |
07 |
|
|
426×12,0-325×10,0 |
- |
- |
- |
- |
14 6842 4446 |
05 |
|
|
426×16,0-325×12,0 |
14 6842 1190 |
00 |
14 6842 4224 |
06 |
14 6842 4448 |
03 |
|
|
426×12,0-273×8,0 |
14 6842 1192 |
09 |
14 6842 4226 |
04 |
14 6842 4450 |
09 |
|
|
426×12,0-273×10,0 |
- |
- |
- |
- |
14 6842 4452 |
07 |
|
|
426×16,0-273×10,0 |
14 6842 1194 |
07 |
14 6842 4228 |
02 |
14 6842 4454 |
05 |
|
|
426×12,0-219×6,0 |
14 6842 1196 |
05 |
14 6842 4230 |
08 |
14 6842 4456 |
03 |
|
|
426×12,0-219×8,0 |
- |
- |
- |
14 6842 4458 |
01 |
||
|
426×16,0-219×10,0 |
14 6842 1198 |
03 |
14 6842 4232 |
06 |
14 6842 4460 |
07 |
|
|
426×12,0-159×8,0 |
14 6842 1200 |
04 |
14 6842 4234 |
04 |
14 6842 4462 |
05 |
|
|
426×16,0-159×10,0 |
14 6842 1202 |
00 |
14 6842 4236 |
02 |
14 6842 4464 |
03 |
|
|
530×14,0-426×12,0 |
14 6842 1204 |
00 |
14 6842 4238 |
00 |
14 6842 4466 |
01 |
|
|
530×16,0-426×16,0 |
- |
- |
- |
- |
14 6842 4468 |
08 |
|
|
530×14,0-377×12,0 |
14 6842 1206 |
09 |
14 6842 4240 |
06 |
14 6842 4470 |
05 |
|
|
530×16,0-377×16,0 |
- |
- |
- |
- |
14 6842 4472 |
03 |
|
|
530×12-426×12 |
14 6842 1208 |
07 |
14 6842 4241 |
05 |
14 6842 4473 |
02 |
|
|
530×16-426×16 |
14 6842 1210 |
02 |
14 6842 4242 |
04 |
14 6842 4474 |
01 |
|
|
530×12-377×12 |
14 6842 1212 |
00 |
14 6842 4243 |
03 |
14 6842 4475 |
00 |
|
|
530×16-377×16 |
14 6842 1214 |
09 |
14 6842 4244 |
02 |
14 6842 4476 |
05 |
|
|
Переход эксцентрический |
45×2,5-32×2,0 |
14 6842 1500 |
06 |
14 6842 4500 |
05 |
14 6842 4750 |
10 |
|
45×4,0-32×4,0 |
14 6842 1502 |
04 |
14 6842 4502 |
03 |
14 6842 4752 |
09 |
|
|
45×2,5-25×1,6 |
14 6842 1504 |
02 |
14 6842 4504 |
01 |
14 6842 4754 |
07 |
|
|
45×4,0-25×3,0 |
14 6842 1506 |
00 |
14 6842 4506 |
08 |
14 6842 4756 |
05 |
|
|
57×4,0-45×2,5 |
14 6842 1508 |
09 |
14 6842 4508 |
08 |
14 6842 4758 |
03 |
|
|
57×5,0-45×4,0 |
14 6842 1510 |
04 |
14 6842 4510 |
03 |
14 6842 4760 |
09 |
|
|
57×4,0-38×2,0 |
14 6842 1512 |
02 |
14 6842 4512 |
01 |
14 6842 4762 |
07 |
|
|
57×5,0-38×4,0 |
14 6842 1514 |
00 |
14 6842 4514 |
05 |
14 6842 4764 |
05 |
|
|
57×4,0-32×2,0 |
14 6842 1516 |
09 |
14 6842 4516 |
08 |
14 6842 4766 |
03 |
|
|
57×5,0-32×3,0 |
14 6842 1518 |
07 |
14 6842 4518 |
06 |
14 6842 4768 |
01 |
|
|
57×4,0-25×1,6 |
14 6842 1520 |
02 |
14 6842 4520 |
01 |
14 6842 4770 |
07 |
|
|
57×5,0-25×3,0 |
14 6842 1522 |
00 |
14 6842 4522 |
02 |
14 6842 4772 |
05 |
|
|
76×3,5-57×3,0 |
14 6842 1524 |
09 |
14 6842 4524 |
08 |
14 6842 4774 |
03 |
|
|
76×6,0-57×5,0 |
14 6842 1526 |
07 |
14 6842 4526 |
06 |
14 6842 4776 |
01 |
|
|
76×3,5-45×2,5 |
14 6842 1528 |
05 |
14 6842 4528 |
04 |
14 6842 4778 |
06 |
|
|
76×6,0-45×4,0 |
14 6842 1530 |
00 |
14 6842 4530 |
00 |
14 6842 4780 |
05 |
|
|
76×3,5-38×2,5 |
14 6842 1532 |
09 |
14 6842 4532 |
08 |
14 6842 4782 |
03 |
|
|
76×6,0-38×3,0 |
14 6842 1534 |
07 |
14 6842 4534 |
06 |
14 6842 4784 |
01 |
|
|
89×3,5-76×3,5 |
14 6842 1536 |
05 |
14 6842 4536 |
04 |
14 6842 4786 |
03 |
|
|
89×6,0-76×5,0 |
14 6842 1538 |
03 |
14 6842 4538 |
02 |
14 6842 4788 |
08 |
|
|
89×8,0-76×6,0 |
14 6842 1540 |
09 |
14 6842 4540 |
08 |
14 6842 4790 |
03 |
|
|
89×3,5-57×3,0 |
14 6842 1542 |
07 |
14 6842 4542 |
06 |
14 6842 4792 |
01 |
|
|
89×6,0-57×4,0 |
14 6842 1544 |
05 |
14 6842 4544 |
04 |
14 6842 4794 |
00 |
|
|
89×8,0-57×5,0 |
14 6842 1546 |
08 |
14 6842 4546 |
02 |
14 6842 4796 |
08 |
|
|
89×3,5-45×2,5 |
14 6842 1548 |
01 |
14 6842 4548 |
00 |
14 6842 4798 |
06 |
|
|
89×6,0-45×4,0 |
14 6842 1550 |
07 |
14 6842 4550 |
06 |
14 6842 4800 |
07 |
|
|
108×4,0-89×3,5 |
14 6842 1552 |
05 |
14 6842 4552 |
04 |
14 6842 4802 |
05 |
|
|
108×6,0-89×6,0 |
14 6842 1554 |
03 |
14 6842 4554 |
02 |
14 6842 4804 |
03 |
|
|
108×4,0-76×3,5 |
14 6842 1556 |
01 |
14 6842 4556 |
00 |
14 6842 4806 |
01 |
|
|
108×6,0-76×5,0 |
14 6842 1558 |
01 |
14 6842 4558 |
09 |
14 6842 4808 |
09 |
|
|
108×4,0-57×3,0 |
14 6842 1560 |
05 |
14 6842 4560 |
04 |
14 6842 4810 |
05 |
|
|
108×6,0-57×4,0 |
14 6842 1562 |
03 |
14 6842 4562 |
02 |
14 6842 4812 |
03 |
|
|
133×5,0-108×4,0 |
14 6842 1564 |
01 |
14 6842 4564 |
00 |
14 6842 4814 |
01 |
|
|
133×8,0-108×6,0 |
14 6842 1566 |
09 |
14 6842 4566 |
09 |
14 6842 4816 |
06 |
|
|
133×4,0-89×3,5 |
14 6842 1568 |
08 |
14 6842 4568 |
07 |
14 6842 4818 |
08 |
|
|
133×6,0-89×5,0 |
14 6842 1570 |
03 |
14 6842 4570 |
02 |
14 6842 4820 |
03 |
|
|
133×8,0-89×6,0 |
14 6842 1572 |
01 |
14 6842 4572 |
00 |
14 6842 4822 |
01 |
|
|
133×5,0-76×3,5 |
14 6842 1574 |
06 |
14 6842 4574 |
09 |
14 6842 4824 |
03 |
|
|
133×8,0-76×5,0 |
14 6842 1576 |
08 |
14 6842 4576 |
07 |
14 6842 4826 |
08 |
|
|
133×4,0-57×3,0 |
14 6842 1578 |
06 |
14 6842 4578 |
05 |
14 6842 4828 |
06 |
|
|
133×8,0-57×4,0 |
14 6842 1580 |
01 |
14 6842 4580 |
00 |
14 6842 4830 |
01 |
|
|
159×4,5-133×4,0 |
14 6842 1582 |
03 |
14 6842 4582 |
09 |
14 6842 4832 |
03 |
|
|
159×8,0-133×8,0 |
14 6842 1584 |
08 |
14 6842 4584 |
07 |
14 6842 4834 |
08 |
|
|
159×4,5-108×4,0 |
14 6842 1586 |
06 |
14 6842 4586 |
05 |
14 6842 4836 |
06 |
|
|
159×8,0-108×6,0 |
14 6842 1588 |
04 |
14 6842 4588 |
03 |
14 6842 4838 |
04 |
|
|
159×4,5-89×3,5 |
14 6842 1590 |
00 |
14 6842 4590 |
09 |
14 6842 4840 |
08 |
|
|
1159×8,0-89×6,0 |
14 6842 1592 |
08 |
14 6842 4592 |
07 |
14 6842 4842 |
08 |
|
|
159×4,5-76×3,5 |
14 6842 1594 |
06 |
14 6842 4594 |
05 |
14 6842 4844 |
06 |
|
|
159×8,0-76×4,0 |
14 6842 1596 |
04 |
14 6842 4596 |
03 |
14 6842 4846 |
04 |
|
|
159×4,5-57×3,0 |
14 6842 1598 |
02 |
14 6842 4598 |
01 |
14 6842 4848 |
02 |
|
|
159×8,0-57×4,0 |
14 6842 1600 |
08 |
14 6842 4600 |
02 |
14 6842 4850 |
08 |
|
|
219×6,0-159×4,5 |
14 6842 1602 |
01 |
14 6842 4602 |
00 |
14 6842 4852 |
06 |
|
|
219×10,0-159×8,0 |
14 6842 1604 |
09 |
14 6842 4604 |
09 |
14 6842 4854 |
04 |
|
|
219×6,0-133×4,0 |
14 6842 1606 |
08 |
14 6842 4606 |
07 |
14 6842 4856 |
02 |
|
|
219×10,0-133×8,0 |
14 6842 1608 |
06 |
14 6842 4608 |
05 |
14 6842 4858 |
00 |
|
|
219×6,0-108×4,0 |
14 6842 1610 |
01 |
14 6842 4610 |
00 |
14 6842 4860 |
06 |
|
|
219×10,0-108×6,0 |
14 6842 1612 |
06 |
14 6842 4612 |
09 |
14 6842 4862 |
04 |
|
|
219×6,0-89×3,5 |
14 6842 1614 |
08 |
14 6842 4614 |
07 |
14 6842 4864 |
02 |
|
|
219×10,0-89×5,0 |
14 6842 1616 |
06 |
14 6842 4616 |
05 |
14 6842 4866 |
00 |
|
|
219×6,0-76×3,5 |
14 6842 1618 |
04 |
14 6842 4618 |
03 |
14 6842 4868 |
09 |
|
|
219×10,0-76×5,0 |
14 6842 1620 |
03 |
14 6842 4620 |
09 |
14 6842 4870 |
04 |
|
|
219×6,0-57×3,0 |
14 6842 1622 |
08 |
14 6842 4622 |
07 |
14 6842 4872 |
02 |
|
|
219×10,0-57×4,0 |
14 6842 1624 |
06 |
14 6842 4624 |
05 |
14 6842 4874 |
00 |
|
|
273×7,0-219×6,0 |
14 6842 1626 |
04 |
14 6842 4626 |
03 |
14 6842 4876 |
09 |
|
|
273×10,0-219×8,0 |
14 6842 1628 |
02 |
14 6842 4628 |
01 |
14 6842 4878 |
07 |
|
|
273×12,0-219×10,0 |
14 6842 1630 |
08 |
14 6842 4630 |
07 |
14 6842 4880 |
02 |
|
|
273×7,0-159×4,5 |
14 6842 1632 |
06 |
14 6842 4632 |
05 |
14 6842 4882 |
00 |
|
|
273×10,0-159×6,0 |
14 6842 1634 |
04 |
14 6842 4634 |
03 |
14 6842 4884 |
09 |
|
|
273×12,0-159×10,0 |
14 6842 1636 |
02 |
14 6842 4636 |
01 |
14 6842 4886 |
07 |
|
|
273×8,0-133×4,0 |
14 6842 1638 |
00 |
14 6842 4638 |
03 |
14 6842 4888 |
05 |
|
|
273×10,0-133×6,0 |
14 6842 1640 |
06 |
14 6842 4640 |
05 |
14 6842 4890 |
00 |
|
|
273×8,0-108×4,0 |
14 6842 1642 |
04 |
14 6842 4642 |
03 |
14 6842 4892 |
09 |
|
|
273×10,0-108×5,0 |
14 6842 1644 |
02 |
14 6842 4644 |
01 |
14 6842 4894 |
07 |
|
|
325×8,0-273×8,0 |
14 6842 1646 |
00 |
14 6842 4648 |
08 |
14 6842 4896 |
05 |
|
|
325×10,0-273×10,0 |
14 6842 1648 |
09 |
14 6842 4650 |
03 |
14 6842 4898 |
03- |
|
|
325×12,0-273×12,0 |
14 6842 1650 |
04 |
14 6842 4652 |
01 |
14 6842 4900 |
04 |
|
|
325×10,0-219×8,0 |
14 6842 1652 |
02 |
14 6842 4654 |
08 |
14 6842 4902 |
02 |
|
|
325×12,0-219×10,0 |
14 6842 1654 |
00 |
14 6842 4656 |
08 |
14 6842 4904 |
00 |
|
|
325×8,0-159×4,5 |
14 6842 1656 |
09 |
14 6842 4658 |
06 |
14 6842 4906 |
09 |
|
|
325×12,0-159×8,0 |
14 6842 1658 |
07 |
14 6842 4660 |
01 |
14 6842 4908 |
07 |
|
|
325×8,0-133×5,0 |
14 6842 1660 |
02 |
14 6842 4662 |
05 |
14 6842 4910 |
02 |
|
|
325×12,0-133×8,0 |
14 6842 1662 |
00 |
14 6842 4664 |
08 |
14 6842 4912 |
00 |
|
|
325×10,0-108×4,0 |
14 6842 1664 |
09 |
14 6842 4666 |
06 |
14 6842 4914 |
09 |
|
|
325×12,0-108×6,0 |
14 6842 1666 |
07 |
14 6842 4668 |
04 |
14 6842 4916 |
07 |
|
|
377×10,0-325×8,0 |
14 6842 1667 |
06 |
14 6842 4670 |
02 |
14 6842 4918 |
05 |
|
|
377×12,0-325×10,0 |
14 6842 1668 |
05 |
14 6842 4672 |
08 |
14 6842 4920 |
00 |
|
|
377×16,0-325×16,0 |
14 6842 1670 |
00 |
14 6842 4674 |
06 |
14 6842 4922 |
09 |
|
|
377×10,0-273×8,0 |
14 6842 1671 |
10 |
14 6842 4675 |
05 |
14 6842 4924 |
07 |
|
|
377×12,0-273×10,0 |
14 6842 1672 |
09 |
14 6842 4676 |
04 |
14 6842 4926 |
05 |
|
|
377×16,0-273×12,0 |
14 6842 1674 |
07 |
14 6842 4678 |
02 |
14 6842 4928 |
06 |
|
|
377×12,0-219×8,0 |
14 6842 1676 |
05 |
14 6842 4680 |
08 |
14 6842 4930 |
09 |
|
|
377×16,0-219×10,0 |
14 6842 1678 |
03 |
14 6842 4682 |
06 |
14 6842 4932 |
07 |
|
|
377×12,0-159×6,0 |
14 6842 1680 |
09 |
14 6842 4684 |
04 |
14 6842 4934 |
05 |
|
|
377X114-325×12 |
14 6842 1681 |
08 |
14 6842 4683 |
05 |
14 6842 4933 |
06 |
|
|
377×16,0-159×8,0 |
14 6842 1682 |
07 |
14 6842 4686 |
02 |
14 6842 4936 |
03 |
|
|
377×14-273×12 |
14 6842 1683 |
06 |
14 6842 4685 |
03 |
14 6842 4935 |
04 |
|
|
426×10,0-377×10,0 |
14 6842 1684 |
05 |
14 6842 4688 |
00 |
14 6842 4938 |
01 |
|
|
426×12,0-377×12,0 |
- |
- |
- |
- |
14 6842 4940 |
07 |
|
|
426 ×М-377×14 |
14 6842 1685 |
04 |
14 6842 4687 |
01 |
14 6842 4937 |
02 |
|
|
426×16,0-377×16,0 |
14 6842 1686 |
03 |
14 6842 4690 |
06 |
14 6842 4942 |
05 |
|
|
426×14-325×12 |
14 6842 1687 |
02 |
14 6842 4689 |
10 |
14 6842 4939 |
00 |
|
|
426×10,0-325×8,0 |
14 6842 1688 |
01 |
14 6842 4692 |
04 |
14 6842 4944 |
03 |
|
|
426×12,0-325×10,0 |
- |
- |
- |
- |
14 6842 4946 |
01 |
|
|
426×16,0-325×12,0 |
14 6842 1690 |
07 |
14 6842 4694 |
02 |
14 6842 4948 |
10 |
|
|
426×12,0-273×8,0 |
14 6842 1692 |
05 |
14 6842 4696 |
00 |
14 6842 4950 |
05 |
|
|
426×12,0-273×10,0 |
- |
- |
- |
- |
14 6842 4952 |
03 |
|
|
426×16,0-273×10,0 |
14 6842 1694 |
03 |
14 6842 4698 |
09 |
14 6842 4954 |
01 |
|
|
426×12,0-219×6,0 |
14 6842 1696 |
01 |
14 6842 4700 |
05 |
14 6842 4956 |
09 |
|
|
426×12,0-219×8,0 |
- |
- |
- |
- |
14 6842 4958 |
08 |
|
|
426×16,0-219×10,0 |
14 6842 1698 |
04 |
14 6842 4702 |
08 |
14 6842 4960 |
03 |
|
|
426×12,0-159×8,0 |
14 6842 1700 |
00 |
14 6842 4704 |
06 |
14 6842 4962 |
01 |
|
|
426×16,0-159×10,0 |
14 6842 1702 |
09 |
14 6842 4706 |
04 |
14 6842 4964 |
06 |
|
|
530×14,0-426×12,0 |
14 6842 1704 |
07 |
14 6842 4708 |
02 |
14 6842 4966 |
08 |
|
|
530×16,0-426×16,0 |
- |
- |
- |
- |
14 6842 4968 |
06 |
|
|
530×14,0-377×12,0 |
14 6842 1706 |
05 |
14 6842 47101 |
08 |
14 6842 4970 |
01 |
|
|
530×16,0-377×16,0 |
- |
- |
- |
- |
14 6842 4972 |
03 |
|
|
530×12-426×12 |
14 6842 1708 |
03 |
14 6842 4711 |
07 |
14 6842 4973 |
09 |
|
|
530×16-426×16 |
14 6842 1710 |
09 |
14 6842 4712 |
06 |
14 6842 4974 |
08 |
|
|
530×12-377×12 |
14 6842 1712 |
07 |
14 6842 4713 |
05 |
14 6842 4975 |
07 |
|
|
530×16-377×16 |
14 6842 1714 |
05 |
14 6842 4714 |
04 |
14 6842 4976 |
06 |
|
(Измененная редакция, Изм. № 1, 2).
ИНФОРМАЦИОННЫЕ ДАННЫЕ
1. РАЗРАБОТАН И ВНЕСЕН Министерством монтажных и специальных строительных работ СССР
РАЗРАБОТЧИКИ
Р.И. Тавастшерна, канд. техн. наук; Г.М. Хажинский, докт. техн. наук; П.В Рыбаков
2. УТВЕРЖДЕН И ВВЕДЕН В ДЕЙСТВИЕ Постановлением Государственного комитета СССР по стандартам от 19.12.1983 г. № 6712
3. Взамен ГОСТ 17378-77
4. Срок проверки – 1993 г., периодтчность – 5 лет.
5. ССЫЛОЧНЫЕ НОРМАТИВНО-ТЕХНИЧЕСКИЕ ДОКУМЕНТЫ
|
Обозначения НТД, на который |
Номер пункта |
6. ПЕРЕИЗДАНИЕ (август 1991 г.) С ИЗМЕНЕНИЯМИ № 1, 2, 3, утвержденными в декабре 1984 г., декабре 1985 г., июне 1989 г. (ИУС 3-85, 4-86, 10-89)
7. Проверен в 1989 г
8. Ограничение срока действия снято Постановлением Госстандарта СССР от 22.06.89 № 1870
